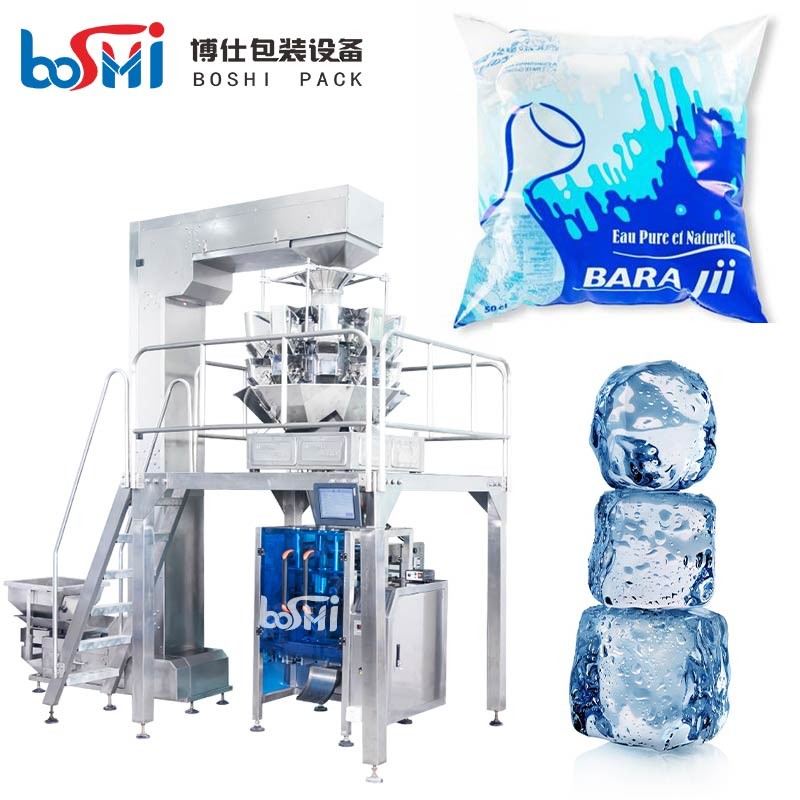

Vertical Automatic Ice Cube Packing Machine 500G 1000G 2000G

Ask Lasest Price
Brand Name :	BOSHI
Model Number :	BS-420 BS-520 BS-720
Certification :	CE SGS
Price :	5000USD-18500USD per set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	300 sets per year
Delivery Time :	10-15 working days

Add to Cart

Product Details
Company Profile

Vertical Automatic Ice Cube Packing Machine 500G 1000G 2000G

Automatic Frozen Product Ice Cube Vertical Packaging Machine 500G 1000G 2000G

Main Features:

1. BS-420 can automatically complete following work: material feeding--multi-head weigher weighing--date coding--bag

making--filling--gas injection / exhaust (optional)--bag sealing--output counting-- conveying finished products.
2. Imported PLC servo and pneumatic control system, high reliability and stable.
3. Touch screen can store 99 sets different product detail parameters, easy to change product without setting.

4. The bag is made from roll film, roll film is folded by bag former on both sides.

5. Independent PID temperature controller, make the bag more beautiful.

6. Human-machine interface touch screen, control the whole machine, conveient and save time.

Applications:

Suitable for puffed food, roasted nuts & seeds, potato chips, candy, cake, dumplings, biscuits,

pasta, dried fruit, pet food, frozen food, different kinds of granule or irregular product.

Machine characteristic:

1. PLC controller with interface touch screen.

2. Servo-driver sealing system

3. Servo-driver film transport system

4. Date printer and film feeding system synchronous

5. Eye mark sensor for film tracking

6. Stainless steel frame

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG
