Name: Auto Vertical Packing Machine Pet Food Packaging Machine For Granules Flakes
Brand: BOSHI
Price: 5000 USD

Add to Cart

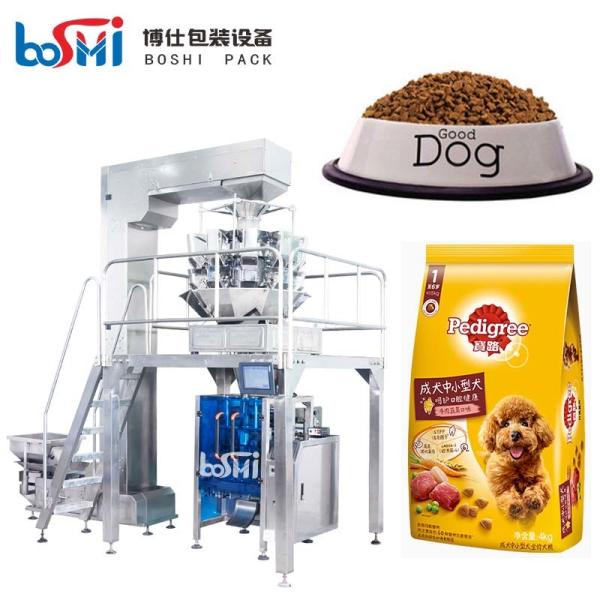

Automatic Vertical Animal Food Pet Feed Dog Food Cat Food Packaging Machine

Main Features:

1. Combination scale, picking the best combination through the computer, with high accuracy and speed.

2. High-precision digital weighing sensor make sure the measure realized.

3. Weigh hopper followed by discharge, effectively prevents blockages.

4. Auto product feeding system, automatic material filling and failure rejection function.

5. The weigher is suitable of granule, irregular product and sticky product.

Applications:

Suitable for granules, flakes, pistachios, cakes, chips, shrimps, dumplings, meatballs, etc. Granulated, frozen foods

and hardware, such as granular, flake, strip, round and irregular materials weight.

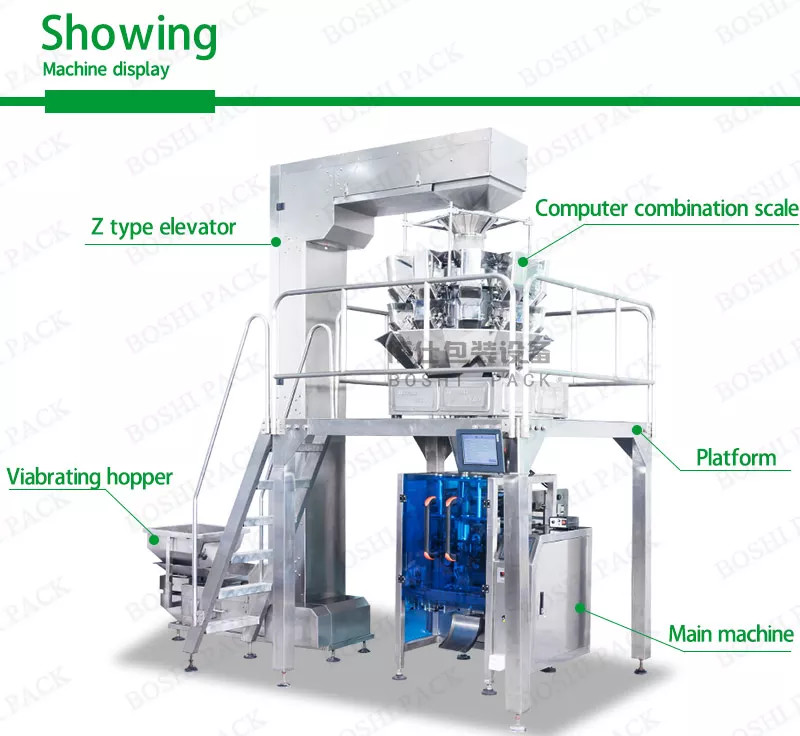

Whole machine main including 4 parts:

1) Z type bucket elevator

2) Multihead weigher

3) Working platform

4) Main packing machine

5) Finished product conveyor

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG
